Kubernetes operators and Ansible: A match made in heaven?

Blog

July 6, 2025·Sven Kooiman

The problem

We have all been there. You finally found an operator to deploy your favorite application. Unfortunately, the operator only manages the deployment not the actual configuration. In this specific case I want to manage Quay (container registry) and its organizations declaratively to embed it in the onboarding template for teams. Having a sysadmin background the task of writing a GO operator to manage organizations in Quay using the REST API seems daunting. Luckily the Operator SDK also supports Ansible.

The tool

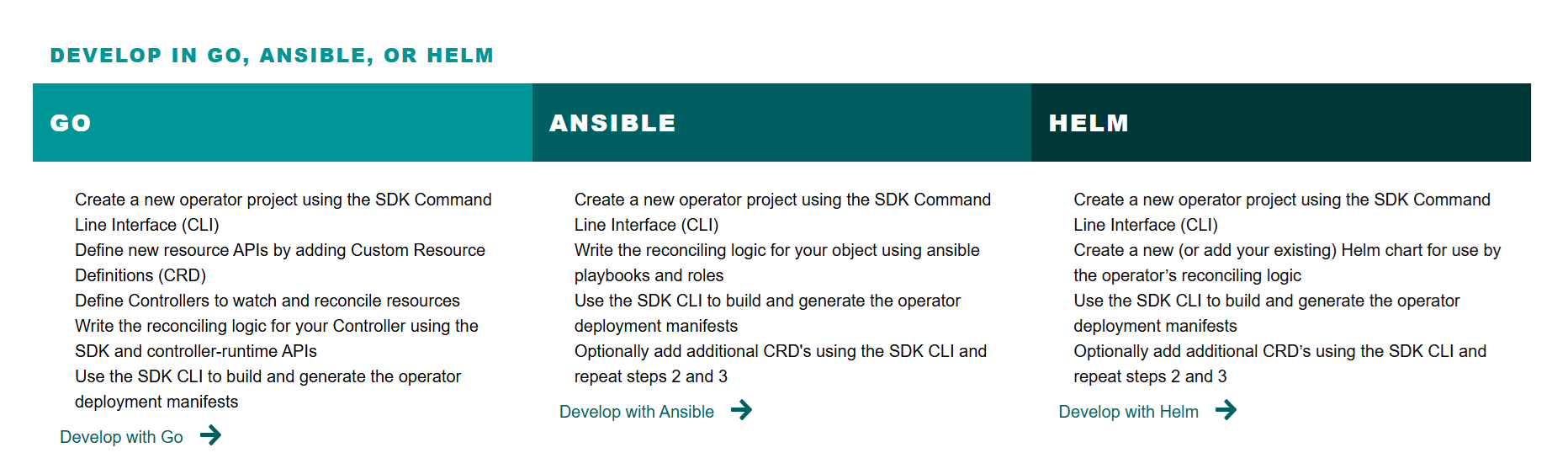

Diagram of operator development options Ref: https://sdk.operatorframework.io/

“The Operator SDK provides the tools to build, test, and package Operators.” The SDK offers three ways to build your operator: 1) Go 2) Ansible 3) Helm Charts. To solve the current problem, Ansible has my preference. Ansible has an active community that maintains a wide variety of collections including the quay_configuration collection maintained by the Red Hat Communities of Practice. It saves a lot of time to simply reuse existing collections and roles instead of writing them from scratch.

The solution

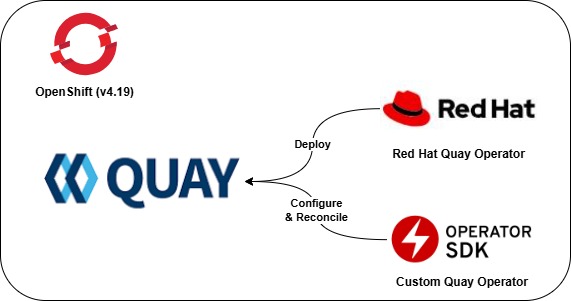

Overview of the Ansible operator solution

Prerequisites

The rest of the blog describes the steps to create an Ansible Operator for Quay. The following prerequisites are required:

OpenShift Cluster
Quay Instance
Access token to Quay with full administrative permissions
Container registry to store the container images

Building the operator

On your system (Linux or macOs) install the operator-sdk (see documentation).

Initialize a template project for the ansible operator and create its first api: QuayOrganization.

mkdir quay-configuration && cd quay-configuration
operator-sdk init --plugins=ansible --domain conclusionxforce.cloud
operator-sdk create api --group quay --version v1alpha1 --kind QuayOrganization --generate-playbook

Add the quay_configuration collection to the requirements.yml to make sure it is included in the controller image.
```
./requirements.yml

...
  - name: infra.quay_configuration
    version: "2.5.2"
...
```

Create the default playbook in playbooks/quayorganization.yml.

4.1 Add the tasks to retrieve the secret containing the superadmin token in Kubernetes.

---
- hosts: localhost
  gather_facts: no
  collections:
  - kubernetes.core
  - operator_sdk.util
  - infra.quay_configuration
  tasks:
  - name: Get the Quay Instance secret
    kubernetes.core.k8s_info:
      kind: Secret
      namespace: "{{ ansible_operator_meta.namespace }}"
      name: "{{ quay_secret.name }}"
    register: quay_secret_result

4.2 Define Quay Configuration task. Take a look at the value for quay_org_name. We use reuse the metadata.name field from the QuayOrganization resource.

  - name: Ensure the organization exists
    include_role:
      name: infra.quay_configuration.quay_org
    vars:
      # Connection parameters
      quay_org_host: "{{ quay_secret_result.resources[0].data.quayHost | b64decode }}"
      quay_org_token: "{{ quay_secret_result.resources[0].data.quayToken | b64decode }}"
      quay_validate_certs: "{{ quay_secret_result.data.quayValidateCerts | b64decode }}"
      # Organization name and email
      quay_org_name: "{{ ansible_operator_meta.name }}"
      quay_org_prune: "{{ quay_prune | default([]) }}"
      quay_org_users: "{{ quay_users | default([]) }}"
      quay_org_robots: "{{ quay_robots | default([]) }}"
      quay_org_teams: "{{ quay_teams | default([]) }}"
      quay_org_default_perms: "{{ quay_default_perms | default([]) }}"
      quay_org_applications: "{{ quay_applications | default([]) }}"
      quay_org_repositories: "{{ quay_repositories | default([]) }}"

Now it is time to adjust the generated Custom Resource Definition. The CRD defines the schema for our quayorganization resource. For the sake of the blog, I have only defined a few fields. The x-kubernetes-preserve-unknown-fields makes it possible to define other fields without including them in the CRD. In a production environment you would want to define the CRDs as precise as possible.

config/crd/bases/quay.conclusionxforce.cloud_quayorganizations.yaml
...
  - name: v1alpha1
    schema:
      openAPIV3Schema:
        description: QuayOrganization is the Schema for the quayorganizations API
        properties:
          apiVersion:
            description: 'APIVersion defines the versioned schema of this representation
              of an object. Servers should convert recognized schemas to the latest
              internal value, and may reject unrecognized values. More info: https://git.k8s.io/community/contributordevel/        sig-architecture/api-conventions.md#resources'
            type: string
          kind:
            description: 'Kind is a string value representing the REST resource this
              object represents. Servers may infer this from the endpoint the client
              submits requests to. Cannot be updated. In CamelCase. More info: https://git.k8s.io/community/   contributordevel/     sig-architecture/api-conventions.md#types-kinds'
            type: string
          metadata:
            type: object
          spec:
            description: Spec defines the desired state of QuayOrganization
            type: object
            x-kubernetes-preserve-unknown-fields: true
            properties:
              quaySecret:
                description: QuaySecret defines a secret containing the information regarding your quay instance
                type: object
                properties:
                  name:
                    description: Name of the Kubernetes Secret containing quay information containing (quayHostquayUser,         quayPassword, quayValidateCerts)
                    type: string
...

Next step is to create a sample resource. Easy to use for testing!

config/samples/quay_v1alpha1_quayorganization.yaml

apiVersion: quay.conclusionxforce.cloud/v1alpha1
kind: QuayOrganization
metadata:
  labels:
    app.kubernetes.io/name: quay-configuration-operator
    app.kubernetes.io/managed-by: kustomize
  name: quayorganization-sample
spec:
  quaySecret:
    name: quay-secret

For native Kubernetes resources (like deployments or services) the operator will automatically delete the resources when the custom resource is deleted. This operator, however, configures Quay through the REST API, so we have to explicitly tell the operator to delete an organization in Quay upon the deletion of the resource, using a finalizer playbook.

7.1 Create the delete-organization playbook.

playbooks/delete-organization.yml
---
- name: Deleting an organization
  hosts: localhost
  become: false
  gather_facts: false
  collections:
  - kubernetes.core
  - operator_sdk.util
  - infra.quay_configuration
  tasks:
  - name: Get the Quay Instance secret
    kubernetes.core.k8s_info:
      kind: Secret
      namespace: "{{ ansible_operator_meta.namespace }}"
      name: "{{ quay_secret.name }}"
    register: quay_secret_result

  - name: Ensure the organization is deleted
    infra.quay_configuration.quay_organization:
      quay_host: "{{ quay_secret_result.resources[0].data.quayHost | b64decode }}"
      quay_token: "{{ quay_secret_result.resources[0].data.quayToken | b64decode }}"
      validate_certs: "{{ quay_secret_result.resources[0].data.quayValidateCerts | b64decode }}"
      name: "{{ ansible_operator_meta.name }}"
      state: absent

7.2 Now add the playbook as a finalizer.

watches.yaml
---
# Use the 'create api' subcommand to add watches to this file.
- version: v1alpha1
  group: quay.conclusionxforce.cloud
  kind: QuayOrganization
  playbook: playbooks/quayorganization.yml
  reconcilePeriod: 5m
  finalizer:
    name: quay.conclusionxforce.cloud
    playbook: playbooks/delete-organization.yml
# +kubebuilder:scaffold:watch

The sharp-eyed reader will notice that I also added a reconcilePeriod of 5 minutes to the resource. This will cause the operator to rerun the creation playbook every 5 minutes .

Generate and customize the cluster service version.

8.1 Generate the manifests

operator-sdk generate kustomize manifests --interactive=false

8.2 Now finalize your Cluster Service Version file and include your name, organization and your favourite logo,

config/manifests/bases/quay-configuration-operator.clusterserviceversion.yaml

apiVersion: operators.coreos.com/v1alpha1
kind: ClusterServiceVersion
metadata:
  annotations:
    alm-examples: '[]'
    capabilities: Basic Install
  name: quay-configuration-operator.v0.0.0
  namespace: placeholder
spec:
  apiservicedefinitions: {}
  customresourcedefinitions: {}
  description: Operator for configuring Quay Organizations
  displayName: Quay Configuration Operator
  icon:
  - base64data: <BASE64 encode picture>
    mediatype: PNG
  install:
    spec:
      deployments: null
    strategy: ""
  installModes:
  - supported: false
    type: OwnNamespace
  - supported: false
    type: SingleNamespace
  - supported: false
    type: MultiNamespace
  - supported: true
    type: AllNamespaces
  keywords:
  - quay
  - xforce
  links:
  - name: Conclusion Xforce
    url: https://conclusionxforce.cloud
  maintainers:
  - email: sven.kooiman@conclusionxforce.nl
    name: sven
  maturity: alpha
  minKubeVersion: 1.27.0
  provider:
    name: Conclusion xForce
  version: 0.0.0

In the Makefile change the IMAGE_TAG_BASE to the repository where you will be publishing your operator and change the default controller to reference this variable.
```
./Makefile

...
IMAGE_TAG_BASE ?= quay.io/<your organization>/quay-configuration-operator
IMG ?= $(IMAGE_TAG_BASE):$(VERSION)
...
```
Build and push your operator to the registry.
```
make docker-build docker-push
```
Create the OLM bundle and push to your container registry. This step is optional and for OpenShift/Operator Lifecycle Manager only. It is possible to directly deploy the operator to your local Kubernetes cluster or run it on your workstation)
```
make bundle bundle-build bundle-push
```
Run the actual operator.

12.1 Run the command below:
```
operator-sdk run bundle quay.io/<your organization>/quay-configuration-operator-bundle:v0.0.1
```

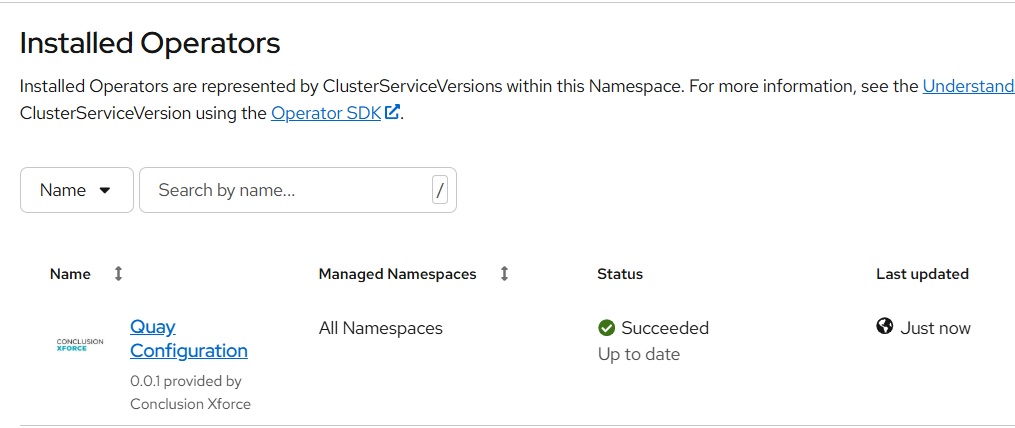

12.2 Check the operator in the OpenShift Console

Deploy your first Quay organization.

13.1 Create the secret containing the Quay token.

oc create secret generic quay-secret \
  --from-literal=quayHost=<insert QuayURL> \
  --from-literal=quayToken=<insert Quay Token> \
  --from-literal=quayValidateCerts=true

13.2 Now create your first custom resource using the sample created earlier

oc apply -f config/samples/quay_v1alpha1_quayorganization.yaml

Check the status of the resource and Quay.

14.1 Check the resource using the OpenShift CLI.
```
oc get quayorganization quayorganization-sample -o yaml
```

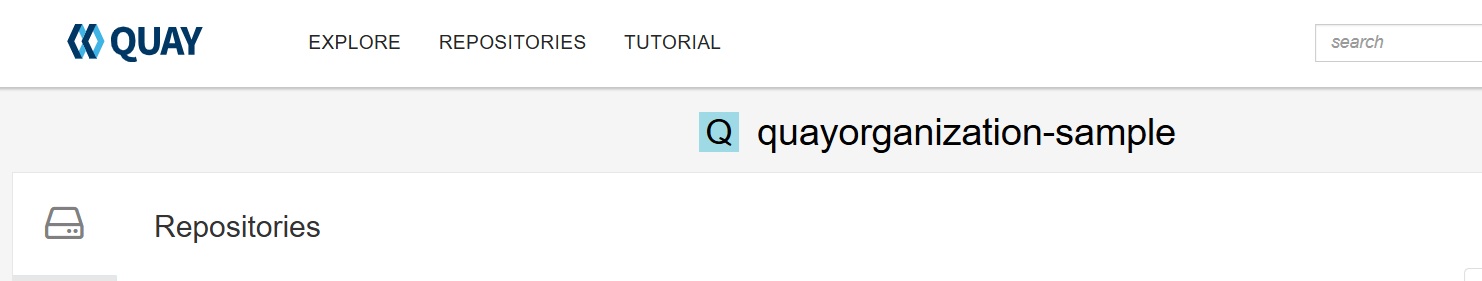

14.2 Check in Quay whether the new organization exists in Quay
Congratulations you have created your first Ansible based operator!

The end

Combining Ansible and operators provides the best of both worlds. You can leverage the ecosystem of Ansible to manage your application in a cloud native way. The example of the quay configuration operator needs a lot of finetuning. Testing with Molecule and more granular CRDs should be added for a production-ready operator. Hopefully the blog has inspired you to use an Ansible Operator next time you need to manage an application in Kubernetes.
